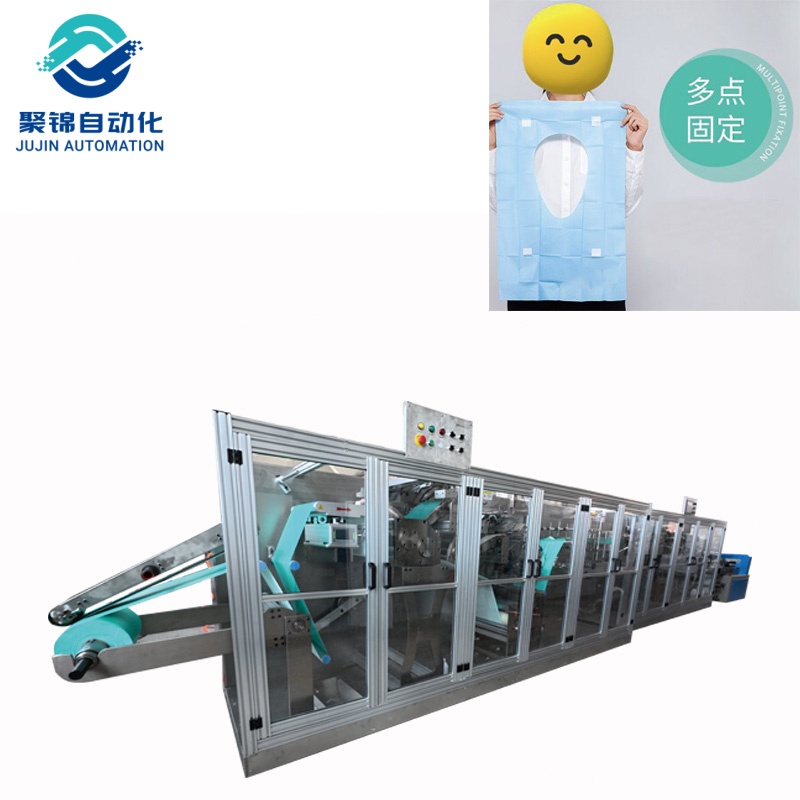

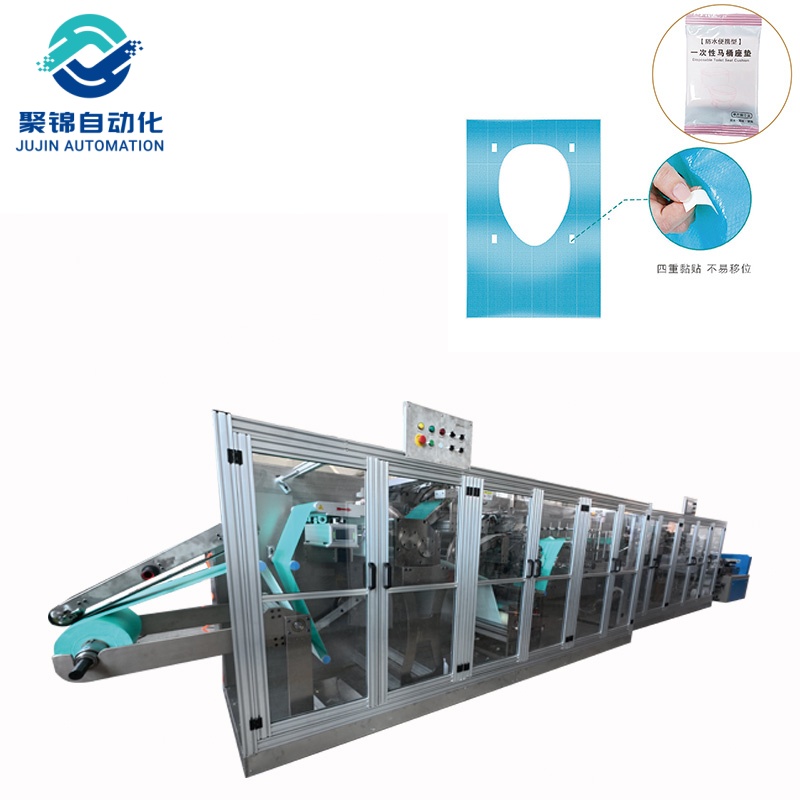

Automatic Glued Nonwoven Toilet Seat Cover Making Machine
The JJMTD-62-65-3 automatic glued nonwoven toilet seat cover making machine is designed for continuous production of disposable toilet seat covers. Its specified production speed is 80-100 pieces per minute, with a qualified rate of 99% or higher.
● Raw material unwinding
● Positioning adhesive application
● Mold punching
● W-type folding
● Cutting
● Continuous three-time folding
● Connection to the packaging machine
● Finished product output
The machine includes a spray adhesive system. Adhesive transfer uses suction-drum cutting and transfer technology, with servo-controlled positioning for flexible adjustment.
The JJMTD-62-65-3 is an automatic glued toilet seat pad production machine for disposable hygiene product manufacturing. Specified materials are laminated paper, laminated nonwoven fabric and release paper.
The product expansion size is 62 cm in width × 65 cm in length. The line integrates adhesive application, punching, folding, cutting and packaging connection.
Material Feeding and Tension Control
The material rack uses an aluminum-profile structure with constant-tension control and manual deviation correction.
Servo Drive and Transmission
The internal transmission system uses servo motor drive with high-precision synchronous wheels and synchronous belts.
Precision Cutting and Punching
The cutting mold is made from mold steel. The servo-controlled cutting system has a specified cutting-size error of no more than 3 mm. The punching unit uses a high-speed-steel mold roller cutter with adjustable servo positioning.
| Item | Specification |
|---|---|
| Machine Model | JJMTD-62-65-3 |
| Product Expansion Size | 62 cm (W) × 65 cm (L) |
| Raw Materials | Laminated paper, laminated nonwoven fabric, release paper |
| Adhesive System | Spray adhesive machine included |
| Release Paper Roll Diameter | ≤40 cm |
| Release Paper Width | 1.5-2.5 cm |
| Production Speed | 80-100 pcs/min |
| Qualified Rate | ≥99% |
| Installed Power | Approx. 15 kW |
| Power Supply | 380 V / 50 Hz / 3 Phase 5 Wire |
| Air Pressure | 0.6-0.8 MPa |
| Paper Core | Standard 3 inch |
| Machine Size | Approx. 9 × 1.5 × 2 m |
| Material Direction | From left to right when facing the operation side |
| Packaging | Packaging machine provided |
● Automatic glued nonwoven toilet seat cover machine working video
● Finished disposable toilet seat pad samples
● Adhesive application process
● Folding and cutting process
● Packaging and finished-product output
The source document specifies the machine, materials and production process but does not provide a detailed list of end-use industries. For the website, the product can be presented as equipment for disposable hygiene product manufacturing without adding unsupported application claims.
● Installation and commissioning by supplier technical personnel
● Operator training during factory acceptance
● 12-month warranty for supplier-manufactured parts, excluding specified wearing parts
● Replacement or repair of defective parts during the warranty period according to the contract terms
● Integrated automatic production process
● Servo-controlled adhesive, cutting and transmission systems
● Constant-tension material feeding and deviation correction
● Packaging machine connection
● Installation, commissioning and operator training support
Q: What materials can the machine process?
A: The specified materials are laminated paper, laminated nonwoven fabric and release paper.
Q: What is the production speed?
A: The specified production speed is 80-100 pieces per minute.
Q: What is the product size?
A: The specified expansion size is 62 cm in width × 65 cm in length.
Q: Does the machine include an adhesive system?
A: Yes. The specification includes a spray adhesive machine.
Q: Can the adhesive position be adjusted?
A: Yes. The adhesive transfer unit uses servo control for flexible position adjustment.
Q: What is the required air pressure?
A: The specified input air pressure is 0.6-0.8 MPa.
Q: Does the line include packaging equipment?
A: Yes. The supplier provides a packaging machine and the production line connects to it for product output.
