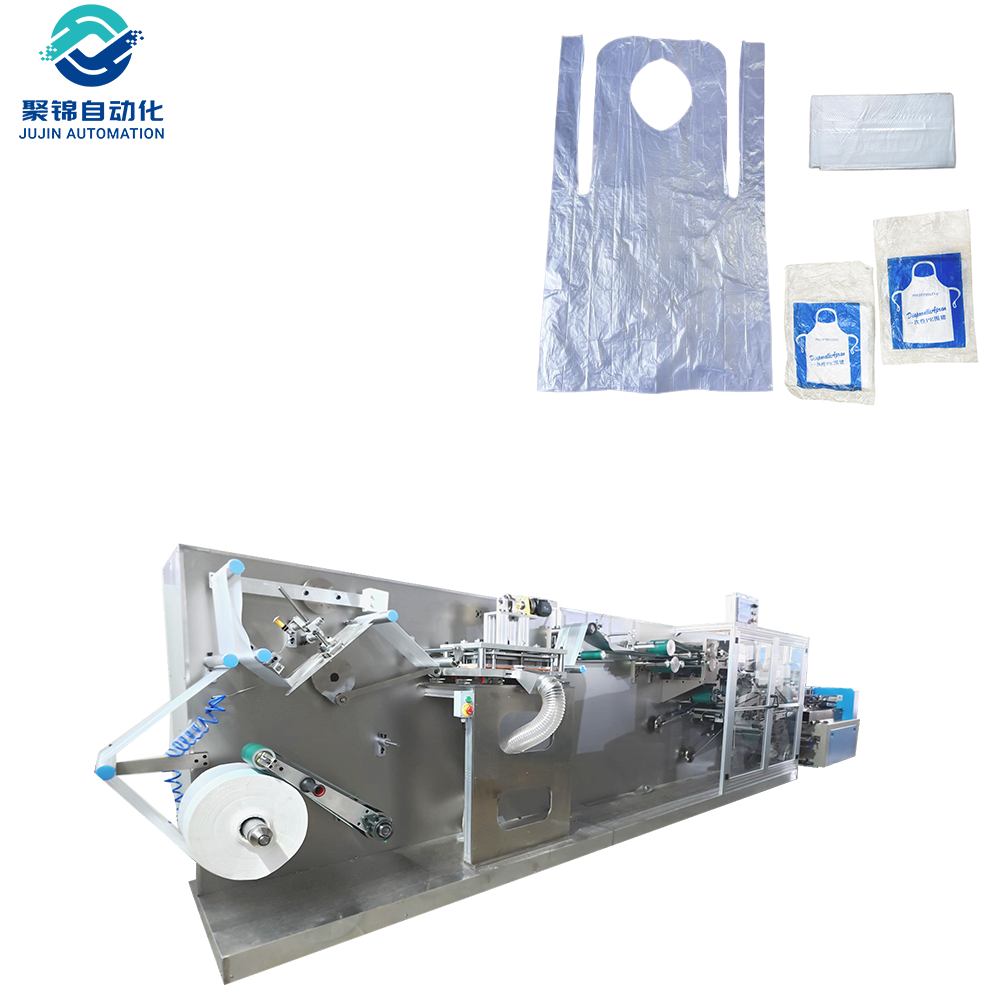

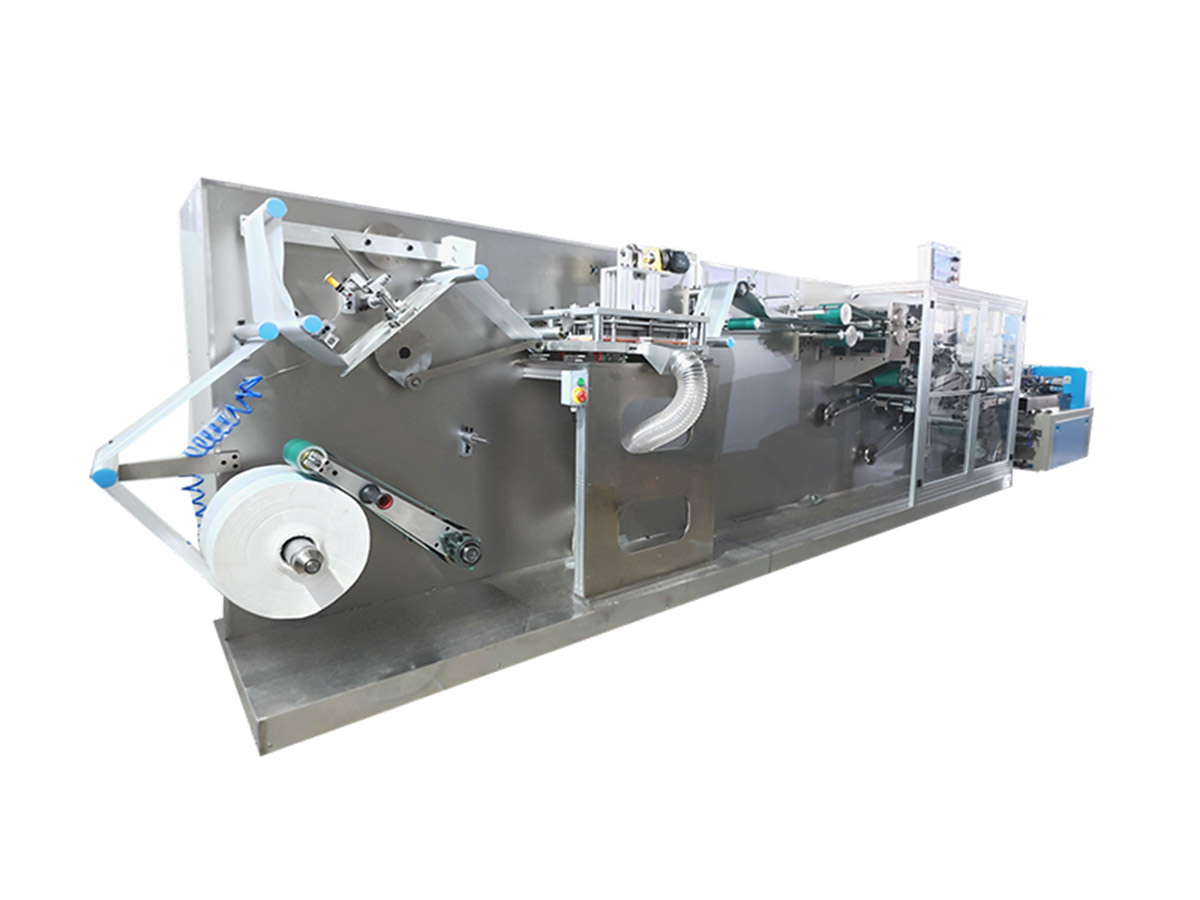

Automatic PE Tubular Film Apron Making Machine

  • ✔ Tubular Film Processing: Specially designed to process PE tubular film, ensuring seamless edge wrapping and high-strength tear resistance.

  • ✔ High-Speed Yield: Delivers a stable and continuous production speed of 50 PCS/MIN, ideal for fulfilling bulk commercial orders.

  • ✔ Integrated 4-Fold System: Automatically executes precise die-forming, longitudinal folding, and transverse 4-folds in one continuous process.

  • ✔ Smart Automation: Features automatic cylinder-driven tension control and a user-friendly touchscreen HMI for effortless operation.

Model:JJWQ-56-90-4
WhatsApp Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Product Introduction

In the food service, healthcare, and sanitation industries, waterproof protective apparel is consumed in massive quantities daily. The PE apron making machine is an industrial-grade, fully automatic converting system engineered to meet this immense demand. Specifically designed to process PE tubular film, this robust disposable apron making machine manages the entire production cycle — from raw material unwinding, edge wrapping, and precision die-cutting to complex folding and conveying — delivering ready-to-pack products continuously at a stable 50 PCS/MIN. As a disposable pe apron machine, it is the dependable production core for medical, catering, and cleaning supply manufacturers worldwide.

Product At a Glance

ModelJJWQ-56-90-4
Production Speed50 PCS/MIN
Raw MaterialPE Tubular Film, Roll Diameter ≤ 700 MM, Width 300 MM
Finished Apron Size950 MM (L) × 300 MM (W)
Folding PatternOne-Third Fold → Longitudinal Fold → Transverse 4-Fold

Key Advantages & Process Technology

  • Seamless Tubular Film Processing: By utilizing PE tubular film (up to 700 mm roll diameter) instead of flat sheets, the machine ensures seamless longitudinal edge wrapping, resulting in a stronger, tear-resistant neck and shoulder structure.

  • Precision Die Forming: Much more than a standard apron cutting machine, this equipment features a synchronized die-forming station that accurately punches out the neck hole and waist ties without slowing down the 50 PCS/MIN production speed.

  • Advanced 4-Fold Mechanism: The system automatically executes a precise 4-fold sequence (including one-third folding, longitudinal, and transverse folding), outputting compact, uniformly folded aprons that are perfectly sized for downstream automatic packaging machines.

  • Automated Tension & Control: Operating a heavy-duty disposable pe apron machine is made simple through an intelligent touchscreen interface and automatic cylinder-driven tension control, completely eliminating the need for manual film adjustments and reducing material waste.

Complete Production Workflow of the Disposable Apron Making Machine

From raw PE film roll to a compact, retail-ready apron, the disposable apron making machine completes the entire converting process in one continuous, fully automatic workflow:

  • Step 1 – Unwinding & Seamless Edge Wrapping: The PE tubular film roll is unwound with automatic cylinder-driven tension control while longitudinal edges are wrapped seamlessly, building a tear-resistant neck and shoulder structure without extra heat sealing.

  • Step 2 – Die Forming: A synchronized die station punches the neck hole and waist ties with precision — the core cutting operation of this apron cutting machine function — without interrupting the production rhythm.

  • Step 3 – Multi-Stage Folding: The machine performs a one-third fold, a longitudinal fold, and a transverse 4-fold in sequence, compressing each apron into a uniform, compact package.

  • Step 4 – Conveying to Packaging: Finished aprons exit through the conveying mechanism in a consistent folded state, ready for direct integration with downstream automatic bagging and packaging machines.

At 50 PCS/MIN, the line sustains approximately 3,000 pieces per hour and about 24,000 pieces per 8-hour shift — output levels that keep bulk orders for hospitals, caterers, and cleaning companies on schedule.

Buyers searching for an apron cutting machine usually need a fast, accurate way to convert apron blanks. This machine covers that requirement and goes further: the synchronized die-forming station performs precision cutting of the apron contour while simultaneously punching the neck hole and waist ties — operations that a standalone cutting unit cannot complete in one pass.

  • Cut + Form in One Station: Die forming replaces separate slitting and hole-punching steps, reducing handling, labor, and material waste.

  • Speed Without Sacrifice: Cutting accuracy is maintained at the full 50 PCS/MIN production rate, with consistent neck-hole and tie dimensions on every apron.

  • Combined with Folding & Packaging: Cutting is only one stage — the same machine then folds and conveys the finished apron, replacing an entire chain of single-purpose machines.

If your factory also processes non-woven fabrics, the same production floor can run an automatic non-woven apron making machine with packaging or a high speed automatic tablecloth making machine alongside.

Technical Specifications

Technical Specifications
ModelJJWQ-56-90-4
Power Supply Voltage380V 50Hz
Operating Power10 KW
Production Speed50PCS/MIN
Equipment Dimensions
Machine Size6000 × 1200 × 1620 MM (L*W*H)
Dimensions Of Each Part Of The Equipment (Without Cover) - Unwinding, Longitudinal Edge Binding, And Die Forming2010 × 1200 × 1620 MM (L*W*H)
Dimensions Of Each Part Of The Equipment (Without Cover) - One-Third Fold, Wrapping, Finished Product Cutting, Transverse Four-Fold3900 × 1200 × 1620 MM (L*W*H)
Dimensions Of Each Part Of The Equipment (Without Cover) - Conveying Mechanism1565 × 500 × 650 MM (L*W*H)
Raw Material Related Parameters
Raw Material Weight And Specifications (PE Tubular Film)Roll Diameter ≤ 700MM, Width 300MM
Finished Product Related Parameters
Finished Product Length Range950MM
Finished Product Width Range300MM
Job-Related Parameter Classes
WorkflowPE Film Feeding -- Longitudinal Edge Wrapping -- Die Forming -- Second Third Fold -- Longitudinal Fold -- Transverse Fold -- Packaging Machine
Horizontal Fold Specifications4-fold
Feed And Tension Control SystemAutomatic Cylinder-Driven Feeding And Tension Control Eliminate The Need For Manual Operation.
Control Operation ModeTouchscreen Control Allows For Easy Specification Changes Simply By Inputting Data; Operation Is Straightforward.

Equipment Video

Finished Product Output Samples

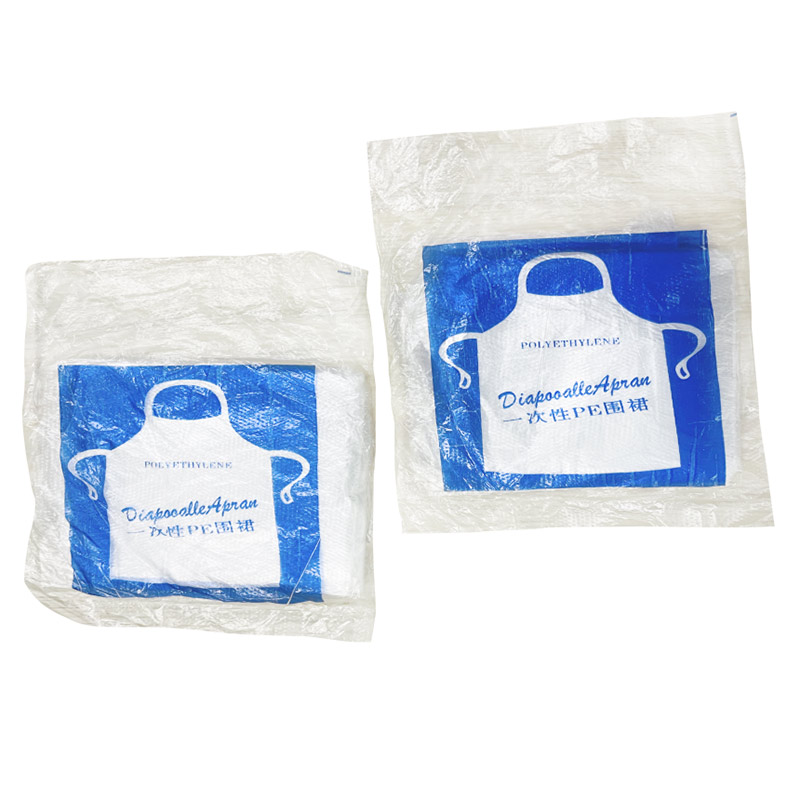

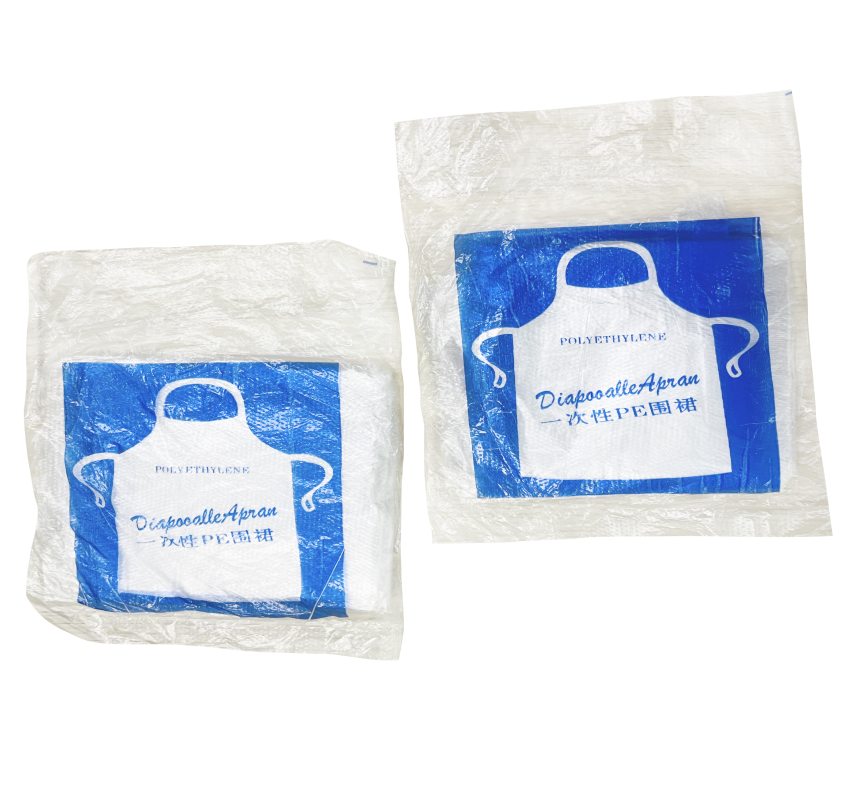

Disposable PE apron produced by automatic machine

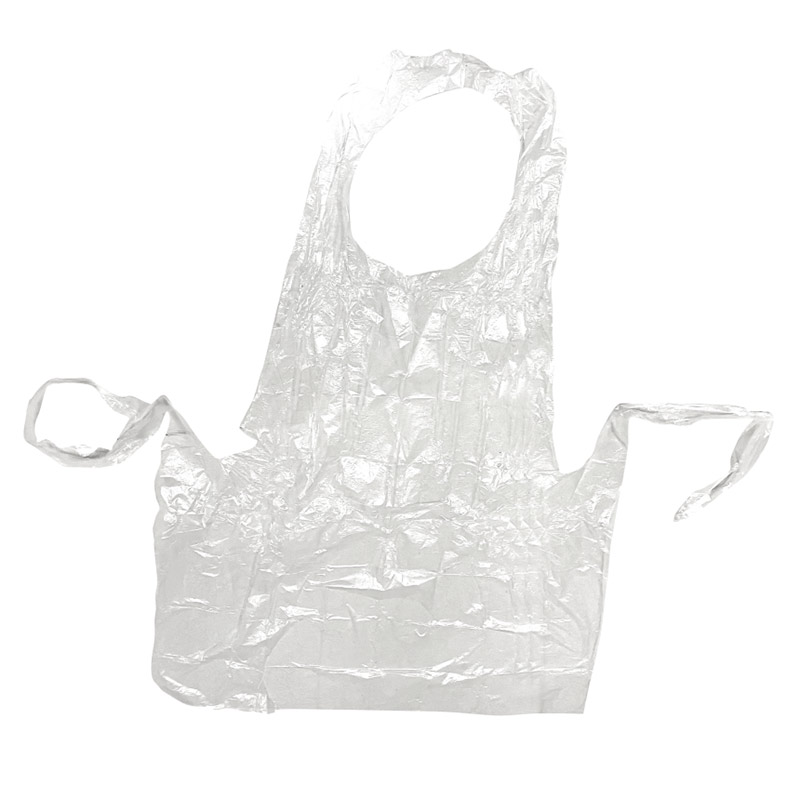

PE tubular film apron folded sample

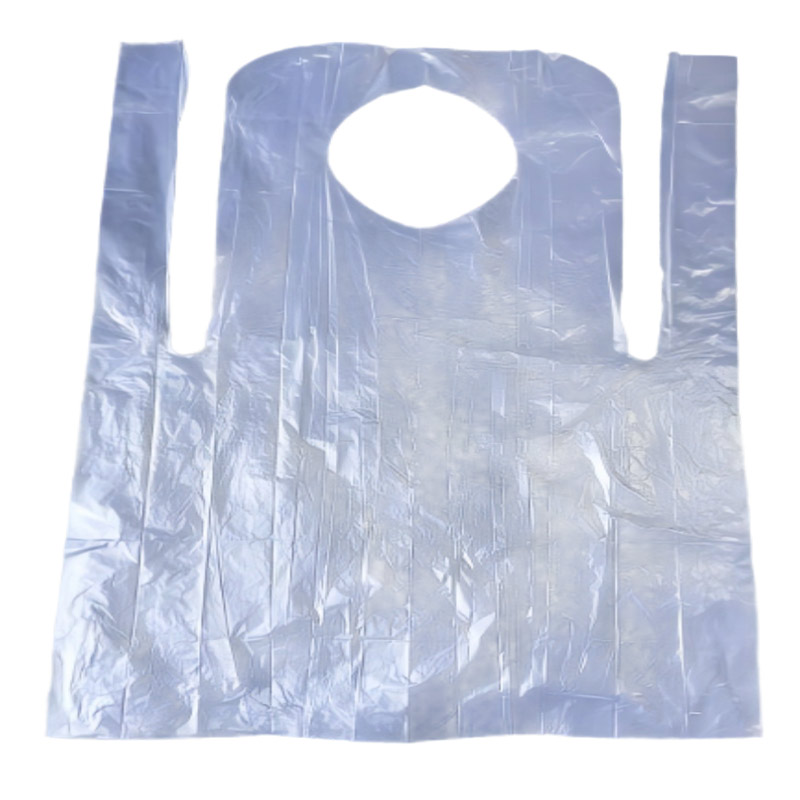

Waterproof PE apron making machine output
Plastic disposable apron manufacturing result

Application Scenarios

The highly waterproof and durable disposable aprons generated by this disposable pe apron machine are indispensable protective gear across multiple fast-moving industries:

  • Food Processing & Catering: Widely used in meatpacking plants, commercial kitchens, and cafeterias to ensure sanitary food handling and protect clothing from spills. Disposable waterproof aprons are a standard practice in food safety programs (FDA food safety guidance).

  • Healthcare & Clinics: Serves as a vital fluid-resistant barrier for nurses, dental hygienists, and caregivers during patient examinations and cleaning procedures.

  • Industrial & Janitorial Cleaning: Provides reliable chemical and splash resistance for sanitation workers, painting crews, and laboratory technicians.

JUJIN supplies this and related converting equipment through the daily hygiene disposable machines, personal care disposable products, and medical disposable manufacturing machines product families.

Global Delivery & Support

- Packaging: Anti-rust treatment + Vacuum film + Fumigation-free Plywood Case.

- Warranty: 12-Month mechanical parts warranty.

- Installation: Detailed video tutorials provided. On-site engineer dispatch available upon request.

Why Choose Us as Your Apron Making Machine Manufacturer?

When you partner directly with an established apron making machine manufacturer like JUJIN, you eliminate the hidden costs associated with trading companies. We supply robust, factory-direct converting machinery built to withstand 24/7 continuous operation. Our engineering team ensures every machine is finely tuned for optimal tension control and precise die-cutting, ensuring your facility maximizes its ROI through minimal material waste and ultra-stable high-speed output.

  • Factory-Direct Manufacturer: JUJIN designs and builds its PE apron making machines in-house in Changzhou, China — you negotiate directly with the engineering team, not an intermediary.

  • OEM / ODM & Customization: Apron sizes, folding patterns, and packaging integration can be configured for your target market. Explore our customization solutions.

  • Quality Assurance & Warranty: Every machine is test-run before shipment and covered by a 12-month mechanical parts warranty.

  • Global Delivery & After-Sales: Fumigation-free plywood case packing, video installation tutorials, and optional on-site engineer dispatch support buyers worldwide.

Frequently Asked Questions (FAQ)

Q: What is a PE apron making machine?

A: A PE apron making machine is industrial converting equipment that takes PE tubular film rolls and automatically unwinds, cuts, die-forms, folds, and conveys them into finished disposable aprons. The JJWQ-56-90-4 completes this whole process in one continuous line at 50 PCS/MIN.

Q: What is the difference between a PE apron making machine and a disposable apron making machine?

A: In commercial use, the terms overlap. A PE apron making machine describes the machine by its raw material (polyethylene film), while a disposable apron making machine describes it by its end product (single-use aprons). The JJWQ-56-90-4 is both: it converts PE tubular film into high-volume disposable aprons for medical, catering, and cleaning markets.

Q: Why does this machine use PE tubular film instead of flat PE film?

A: Using tubular film allows the machine to create seamless longitudinal edges without the need for additional heat sealing along the sides. This makes the finished apron much stronger, significantly reducing the chance of tearing at the neck and shoulders during use.

Q: What raw material specifications does the machine accept?

A: The machine is designed for PE tubular film with a roll diameter up to 700 mm and a width of 300 mm. Automatic cylinder-driven tension control keeps the film stable throughout the process.

Q: How many aprons can the machine produce per hour or per shift?

A: At 50 PCS/MIN, the machine produces approximately 3,000 aprons per hour and about 24,000 aprons per 8-hour shift (theoretical maximum, excluding changeover and stoppage time). Actual output depends on film quality and operating schedule.

Q: Can this machine be connected to an automatic packaging line?

A: Yes. The advanced 4-fold mechanism ensures the finished aprons exit the conveying mechanism in a highly compact, uniformly folded state, making it extremely easy to integrate directly into downstream automated bagging or packaging machines.

Q: What sizes of aprons can this disposable PE apron machine produce?

A: The standard finished apron measures 950 mm in length and 300 mm in width. Operators can adjust folding and dimension settings through the touchscreen HMI for different packaging requirements.

Q: Is this machine an apron cutting machine, and can it cut different shapes?

A: It includes full apron cutting capability and goes further: the synchronized die-forming station cuts the apron contour while punching the neck hole and waist ties in the same pass — work a standalone apron cutting machine cannot finish alone. For custom die shapes, contact us with your apron design.

Q: What are the installation and power requirements?

A: The machine runs on 380V 50Hz with an operating power of 10 kW, and the full system footprint is 6000 × 1200 × 1620 mm (L*W*H). Detailed video installation tutorials are provided with every order, and on-site engineer dispatch is available on request.

Q: What is the price of a PE apron making machine, and what is the MOQ?

A: Pricing depends on configuration — film width, folding pattern, accessories, and destination — so we recommend sending your target specs for an accurate factory-direct quote. JUJIN is an apron making machine manufacturer that sells in-house with no trading-company markup, and every machine includes a 12-month mechanical parts warranty.
