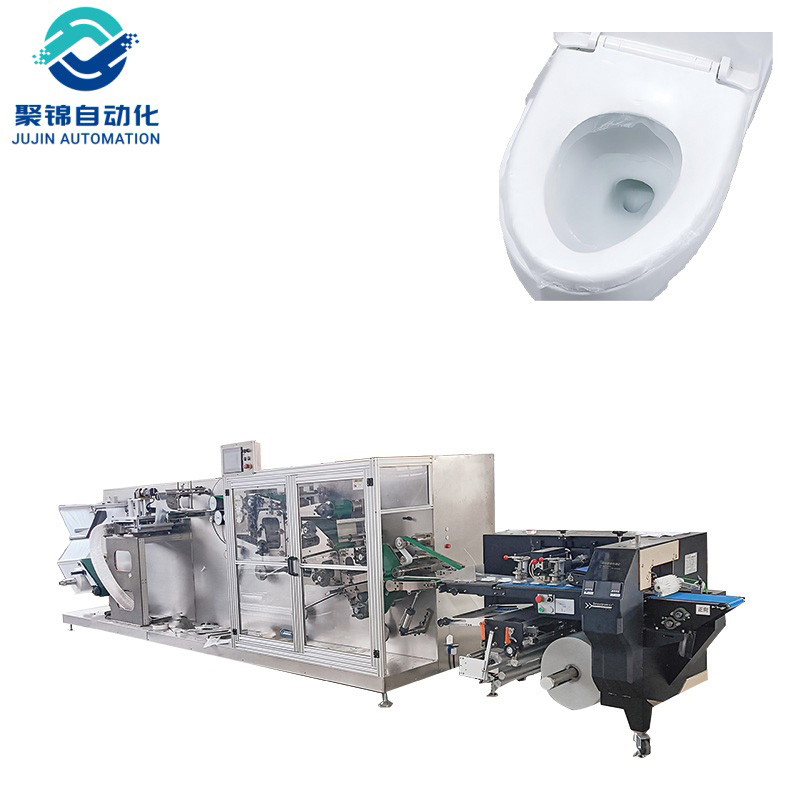

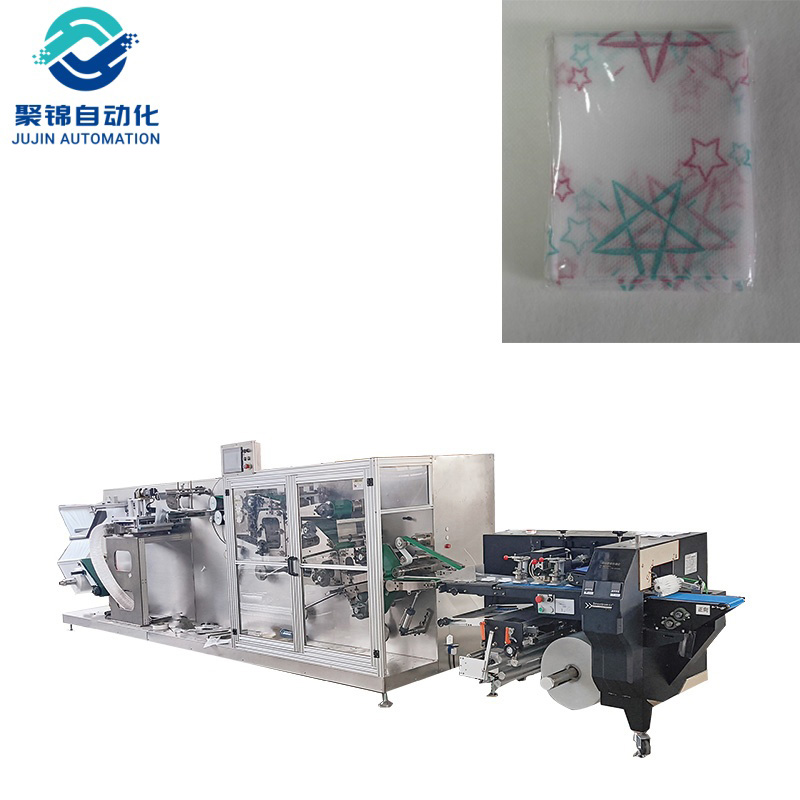

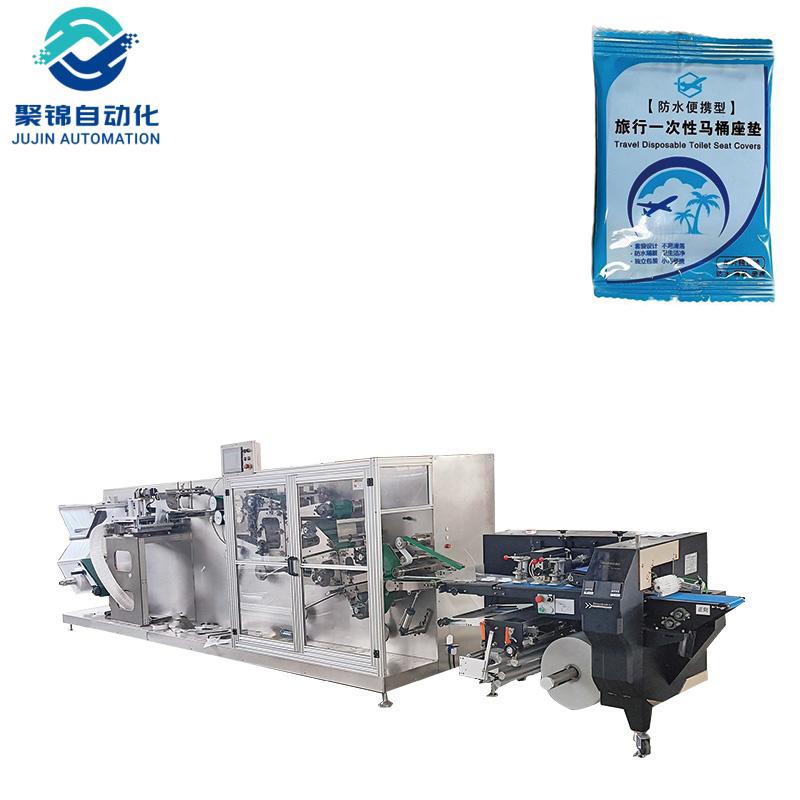

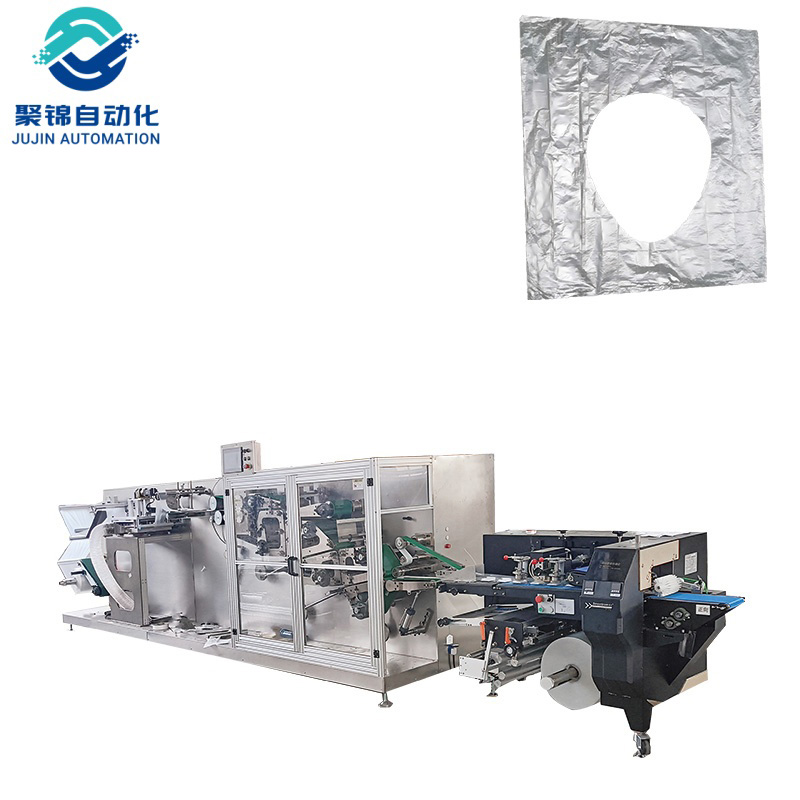

Automatic PE Toilet Seat Pad Making Machine
High-Speed Automatic Production
The JJDZ-40-45-3 automatic PE toilet Seat Pad making machine is designed for mass production of disposable toilet Seat Pads with stable performance and high efficiency. The production speed reaches up to 100 pieces per minute.
Public restrooms, hotels, airports, and healthcare facilities rely on disposable toilet seat pads to keep every user protected — and the demand is continuous. JUJIN's automatic toilet seat pad making machine converts PE tubular film into finished, individually folded seat pads in one integrated line. The JJDZ-40-45-3 combines heat sealing, hole cutting, longitudinal W folding, cutting, three-times transverse folding, and automatic packaging at up to 100 pieces per minute, with a qualified rate of 99% or higher. The output is a uniform, ready-to-pack product that keeps hygiene-product manufacturers running at full capacity.
| Model | JJDZ-40-45-3 |
| Production Speed | Up to 100 PCS/MIN |
| Product | Disposable PE Toilet Seat Pad |
| Raw Material | PE Tubular Film, roll diameter ≤ 800 mm |
| Folding & Packaging | Longitudinal W folding + 3× transverse folding + automatic packaging |
High-Speed, Stable Output (100 PCS/MIN): Servo motor precision control and automatic material tension adjustment keep the line running at full speed without stretching or misalignment, supporting a production qualification rate of 99% or higher.
Sealing + Punching in One Pass: Heat sealing forms the pad edges and hole cutting opens the seat opening in the same continuous flow — no separate handling between stations.
W Folding + Triple Transverse Folding: The longitudinal W fold narrows the web, then three-times transverse folding compresses each pad into a compact, uniform stack.
Integrated Automatic Packaging: Finished pads move directly into the packaging stage on the same line, removing a whole manual packing step from your labor cost.
Automatic Deviation Correction: The system keeps the film web centered automatically, minimizing edge waste and downtime.
From PE film roll to packaged pad, the line completes the full production cycle without manual intervention:
Stage 1 – Unwinding & Sealing: Raw material unwinding feeds PE tubular film under automatic tension control; heat sealing closes the pad edges with consistent strength.
Stage 2 – Hole Cutting & Longitudinal Folding: Hole cutting opens the seat opening, and the longitudinal W fold narrows the web to the pad width.
Stage 3 – Cutting & Transverse Folding: Cutting separates each pad, and three-times transverse folding compresses it into a compact package-ready unit.
Stage 4 – Automatic Packaging: Folded pads are packed automatically at the end of the line, ready for cartoning and shipping.
At 100 PCS/MIN, the line sustains approximately 6,000 pads per hour and about 48,000 pads per 8-hour shift — enough volume for hotel chains, airport facilities, and hygiene-product distributors to stay stocked year-round.
What sets this machine apart is that sealing, hole cutting, folding, and packaging are all built into one production line. Many factories start with separate sealing and cutting units and then add packing as an afterthought — which costs floor space, labor, and alignment time. On the JJDZ-40-45-3, the pad never leaves the line between sealing and packaging, so every pad leaves with the same fold geometry, the same edge quality, and the same pack count. For factories that also supply nonwoven hygiene products, JUJIN offers matching lines such as a disposable non-woven toilet seat pad making machine, a disposable non-woven toilet seat cover making machine, and an automatic cotton-added toilet seat pad making machine.
| Technical Specifications | |
|---|---|
| Machine Model | JJDZ-40-45-3 |
| Product | Disposable PE Toilet Seat Pad |
| Production Speed | 100 pcs/min |
| Raw Material | PE Tubular Film |
| Maximum Roll Diameter | ≤800mm |
| Folding Method | Longitudinal W Folding + Three Times Horizontal Folding |
| Production Rate | ≥99% |
| Installed Power | Approx. 12KW |
| Power Supply | 380V / 50Hz / 3 Phase 5 Wire |
| Air Pressure | 0.6-0.8MPa |
| Machine Size | Approx. 6×3.5×2.5m |
Disposable toilet seat pads produced by this line are a standard hygiene solution wherever public or shared toilets are used in high volume:
Hotels & Hospitality: A low-cost, visible hygiene touchpoint in guest bathrooms that also reduces cleaning workload between guests.
Airports, Railway Stations & Public Facilities: High-traffic restrooms where single-use protection is expected and stock turnover is constant.
Hospitals & Healthcare Centers: Supports infection-control routines in patient and visitor washrooms.
Disposable Hygiene Product Manufacturers: The core production equipment for private-label and bulk suppliers serving all of the above channels.
JUJIN supplies this and related converting equipment through the daily hygiene disposable machines, personal care disposable products, and public hygiene disposable supplies product families.
Pre-Delivery Testing: Every machine is tested before delivery so the line arrives verified and ready for commissioning.
Installation & Training: Installation and commissioning support and operator training are provided with each order.
12-Month Warranty: Manufacturer-produced parts are covered for 12 months, giving you predictable after-sales protection.
JUJIN is a professional disposable-product machinery manufacturer based in Changzhou, China, with the engineering team behind the machine available directly to you. Buying from us means factory-direct pricing, no trading-company markup, and a line that is built, tested, and supported by the people who designed it.
Specialized Machinery Manufacturer: Advanced servo control technology, automatic tension adjustment, and deviation correction are standard on our converting lines.
Customized Production Solutions: Pad size, fold pattern, and packaging format can be configured for your target market. Explore our customization solutions.
Complete Technical Support: Pre-delivery testing, installation and commissioning, operator training, and a 12-month parts warranty.
Q: What is a toilet seat pad making machine?
A: A toilet seat pad making machine is automatic equipment that produces disposable toilet seat pads from PE tubular film — in short, a seat pad making machine specialized for bathroom hygiene products. The JJDZ-40-45-3 integrates sealing, hole cutting, folding, cutting, and automatic packaging in one line at up to 100 PCS/MIN.
Q: What is the difference between a toilet seat pad machine and a toilet seat cover machine?
A: The terms are often used interchangeably, with a slight product difference: a seat pad is a full pad placed on the seat, while a seat cover may be shaped more closely around the seat ring. Both belong to the same family of disposable toilet hygiene products. If you produce nonwoven versions instead of PE, see our non-woven toilet seat pad and seat cover machines in the related products below.
Q: What materials can this machine use?
A: Mainly PE tubular film for disposable toilet seat pads, with a maximum roll diameter of 800 mm.
Q: What is the production speed?
A: Up to 100 pieces per minute — approximately 6,000 pads per hour and about 48,000 pads per 8-hour shift, excluding changeover and stoppage time.
Q: Is the machine fully automatic?
A: Yes, it integrates feeding, sealing, hole cutting, folding, cutting, and packaging in one continuous automatic process.
Q: What folding method does the machine use?
A: The line performs longitudinal W folding followed by three-times transverse folding, producing compact, uniformly folded pads that feed directly into the automatic packaging stage.
Q: Does the machine include automatic packaging?
A: Yes. Automatic packaging is integrated at the end of the line, so folded pads are packed without a separate manual packing stage.
Q: What are the power and space requirements?
A: The machine requires 380V / 50Hz / 3-phase 5-wire power at approximately 12 kW, with air pressure of 0.6–0.8 MPa and a machine footprint of approximately 6 × 3.5 × 2.5 m.
Q: Can the machine be customized?
A: Yes. Pad dimensions, folding pattern, and packaging format can be customized according to customer requirements.
Q: Do you provide installation and training?
A: Yes. Installation and commissioning support and operator training are provided, and manufacturer-produced parts carry a 12-month warranty.
Q: Are you a manufacturer, and how do you price your machines?
A: Yes — JUJIN is a factory-direct toilet seat pad machine manufacturer in Changzhou, China. Pricing depends on configuration (pad size, folding and packaging options, accessories, destination); send us your specs for an accurate factory-direct quote.
