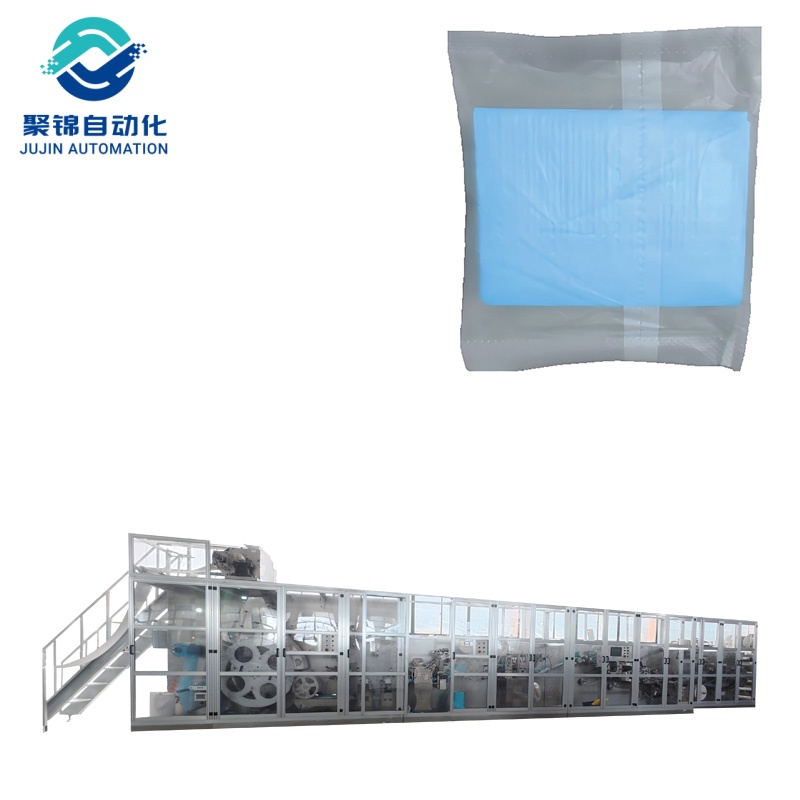

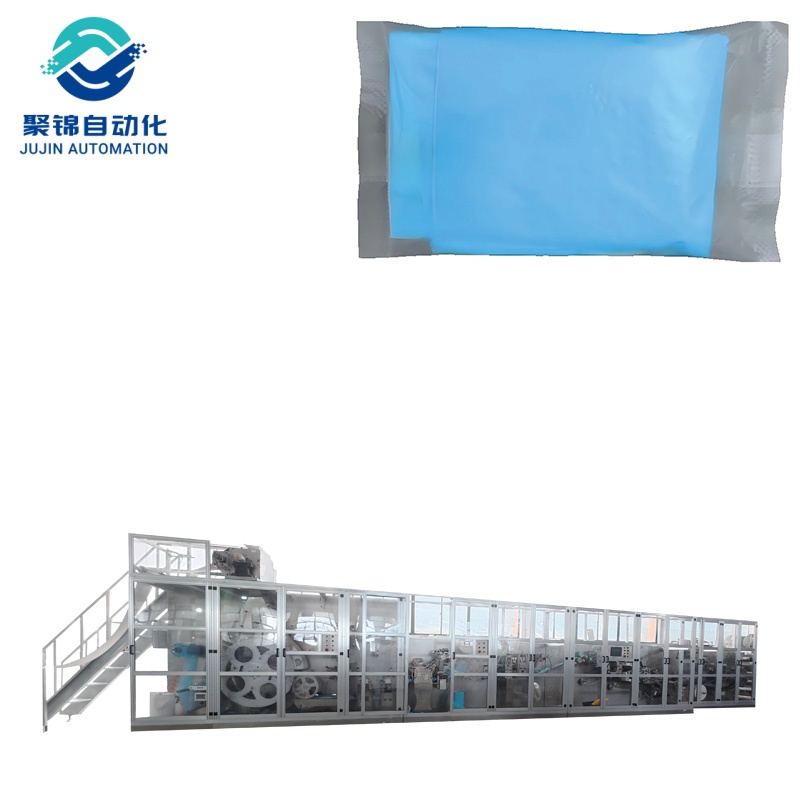

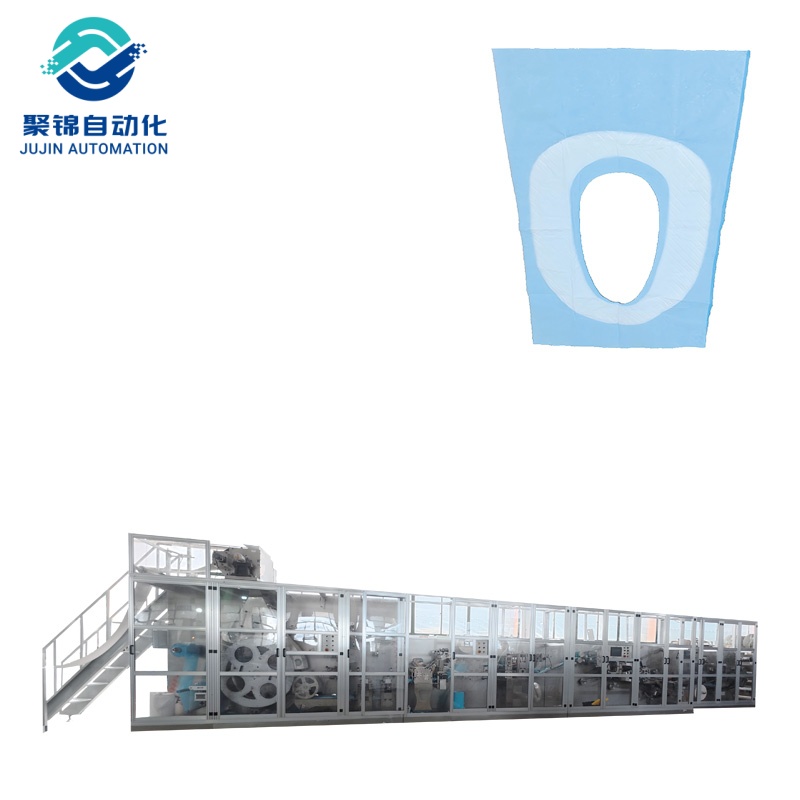

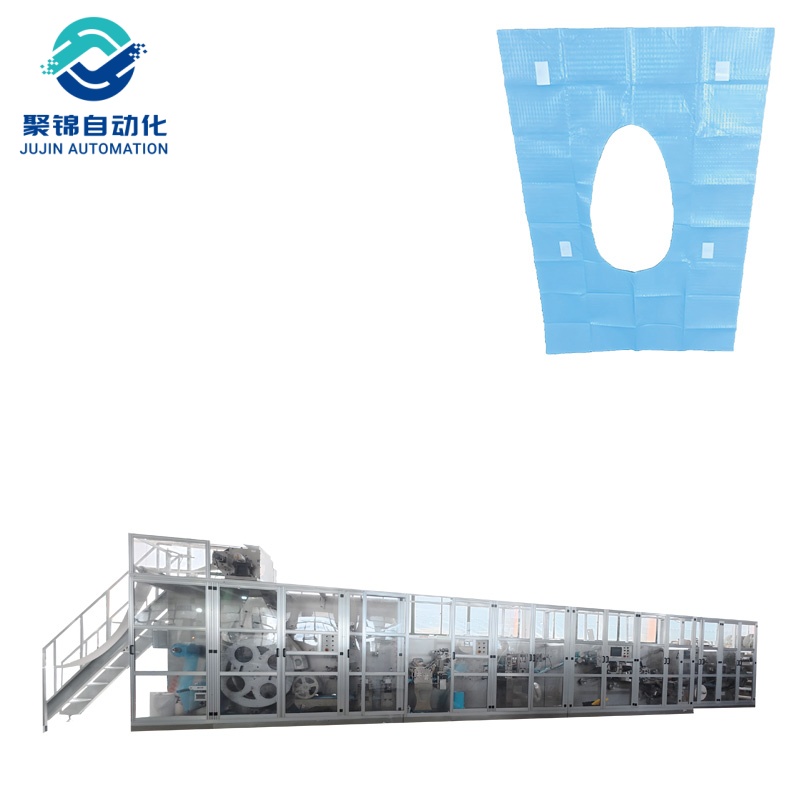

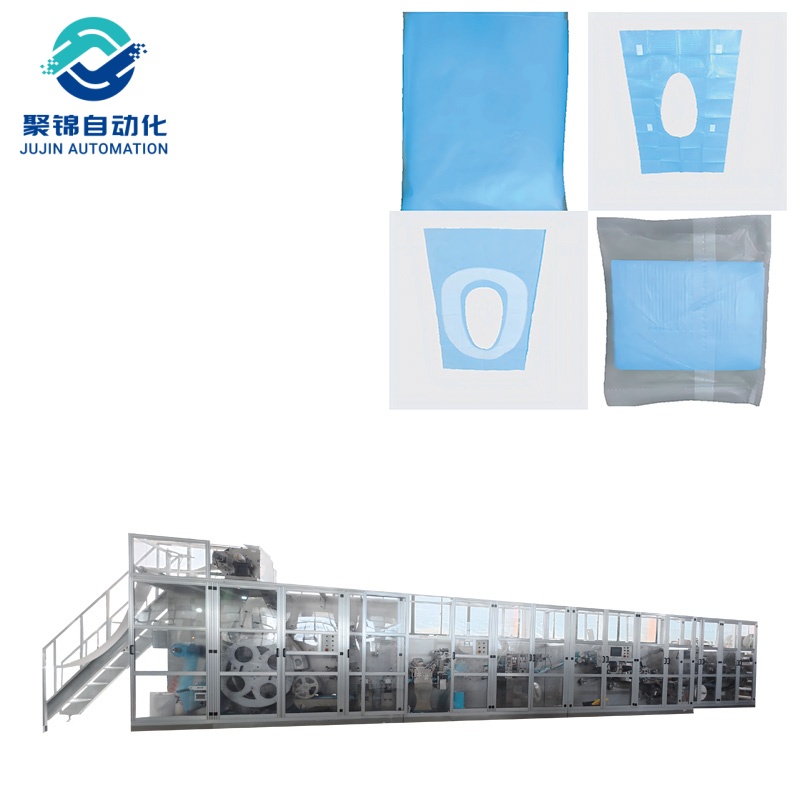

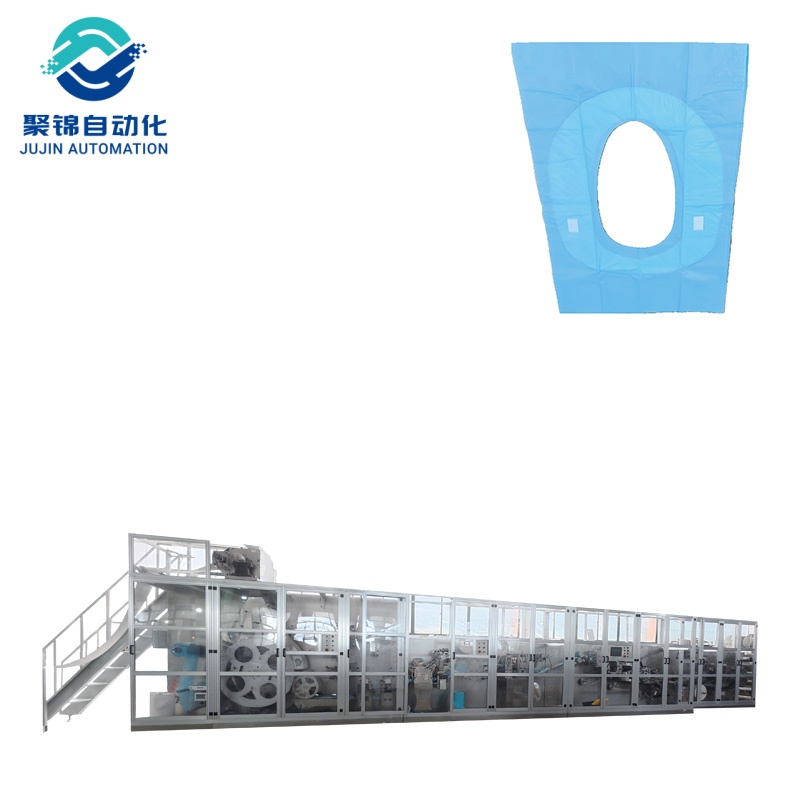

Automatic Cotton Added Toilet Seat Pad Making Machine
✔ High-Speed Automatic Production
✔ Integrated Multi-Process Production
✔ Servo-Controlled Adhesive Application

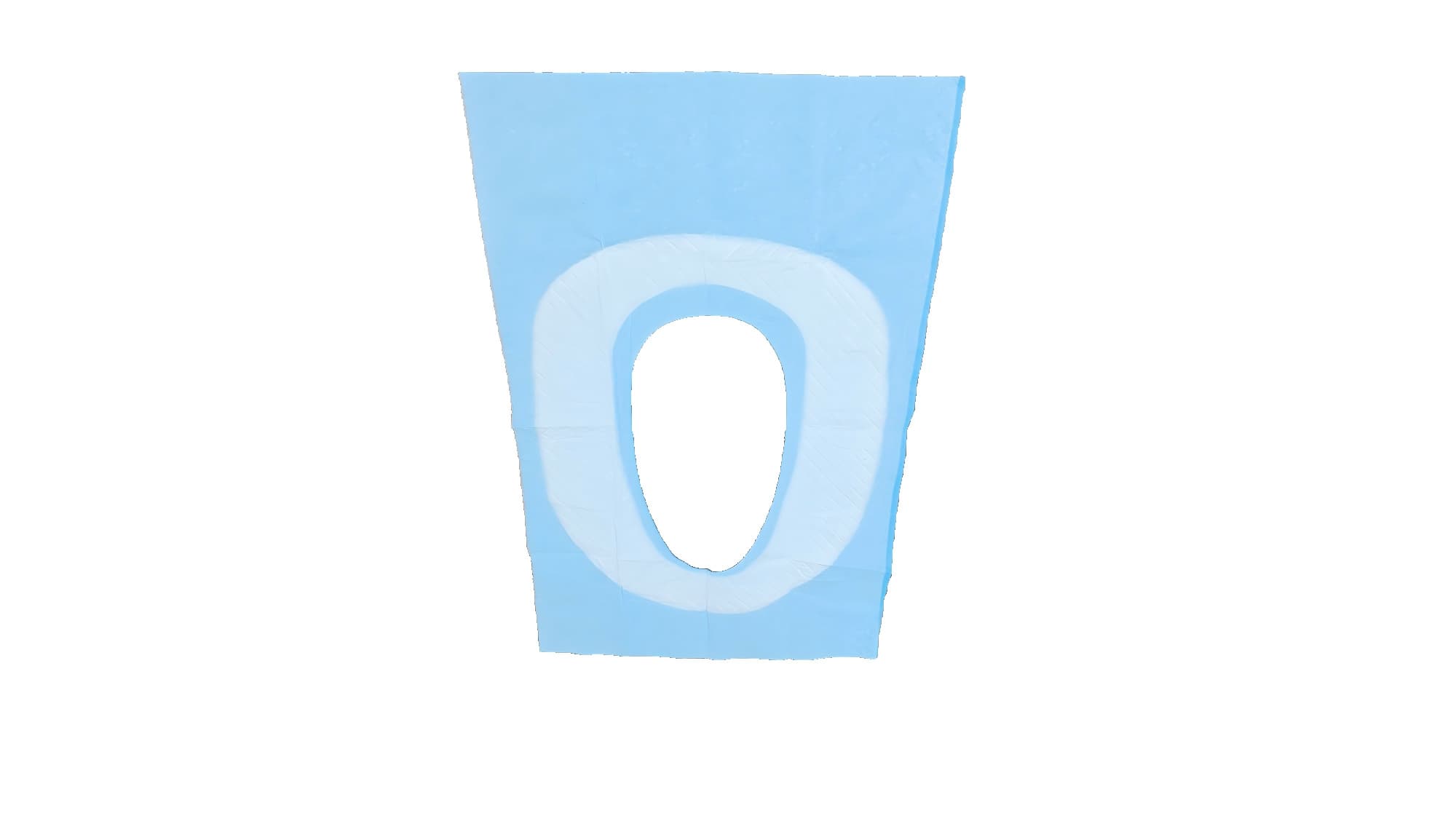

JJMTD-62-65-2 automatic cotton-added toilet seat pad machine is a complete production line that converts cast film, tissue, wood pulp, laminated paper and laminated nonwoven fabric into finished, small-packed toilet seat pads. Forming, embossing, composite forming, adhesive positioning, folding, cutting and packaging all run in one continuous pass at 80-100 pcs/min, with a qualified rate of 99% or higher.
The line handles pad expansion sizes from 40-62 cm (W) × 40-65 cm (L), delivering clean-edge cutting, stable folding and auto-counting output — a one-operator solution from roll stock to packaged product.
Servo-controlled unwinding with manual edge guide keeps tension stable across cast film, tissue, wood pulp and laminated materials — no sagging, no waste from over-tension.
Servo-driven conveyor with high-precision synchronous wheel transmission keeps every station in sync for consistent, repeatable output.
Blade and bottom roller are machined from high-quality mold steel for clean, burr-free edges — no extra trimming before packing.
Wave-type longitudinal folding holds folding accuracy within 3 mm, so pads stack evenly and pack cleanly.
Continuous transverse folding with servo phase adjustment keeps folding error within 5 mm even at full speed.
The output platform auto-stacks finished sheets and counts them, so one operator can manage the whole line.
Technical specifications below follow the contract configuration of model JJMTD-62-65-2. Final dimensions may be adjusted after engineering design.
| Machine Model | JJMTD-62-65-2 (contract product-order section; technical appendix lists JJMTD-62-65-3) | Product | Automatic Cotton-Added Toilet Seat Pad |
| Product Expansion Size | 40-62 cm (W) × 40-65 cm (L) | Raw Materials | Cast film, toilet paper, wood pulp, laminated paper, laminated nonwoven fabric |
| Production Speed | 80-100 pcs/min | Qualified Rate | ≥99%, excluding material changeover and material-related factors |
| Paper Core | Standard 3 inch | Input Air Pressure | 0.6-0.8 MPa |
| Power Supply | 380 V / 50 Hz / 3 Phase 5 Wire | Installed Power | Approx. 15 kW |
| Machine Size | Approx. 13.5 × 1.8 × 3 m; final dimensions to be determined after design | Material Direction | Left to right when facing the operation side |
| Packaging | Small-package packaging and sealing to finished product | ||

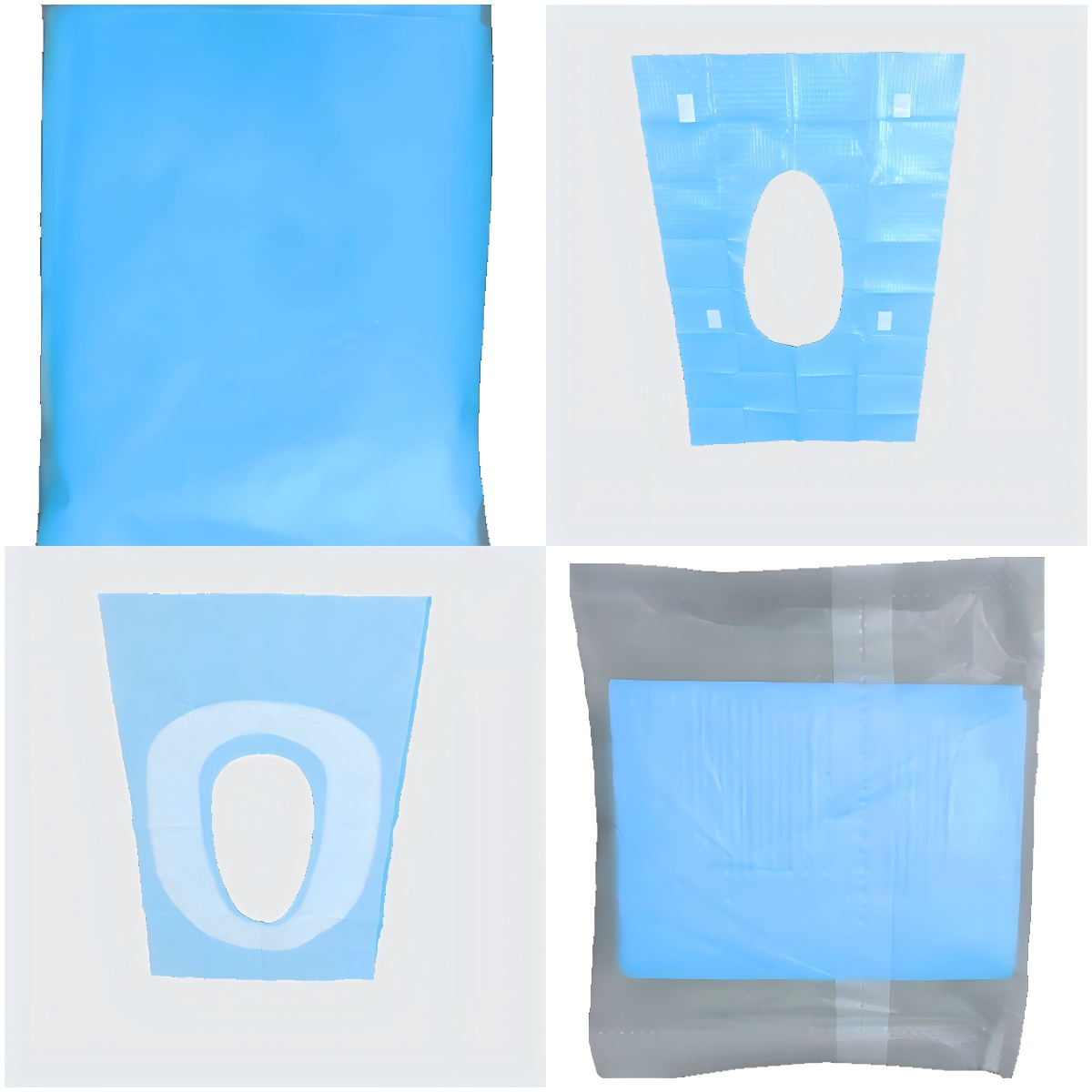

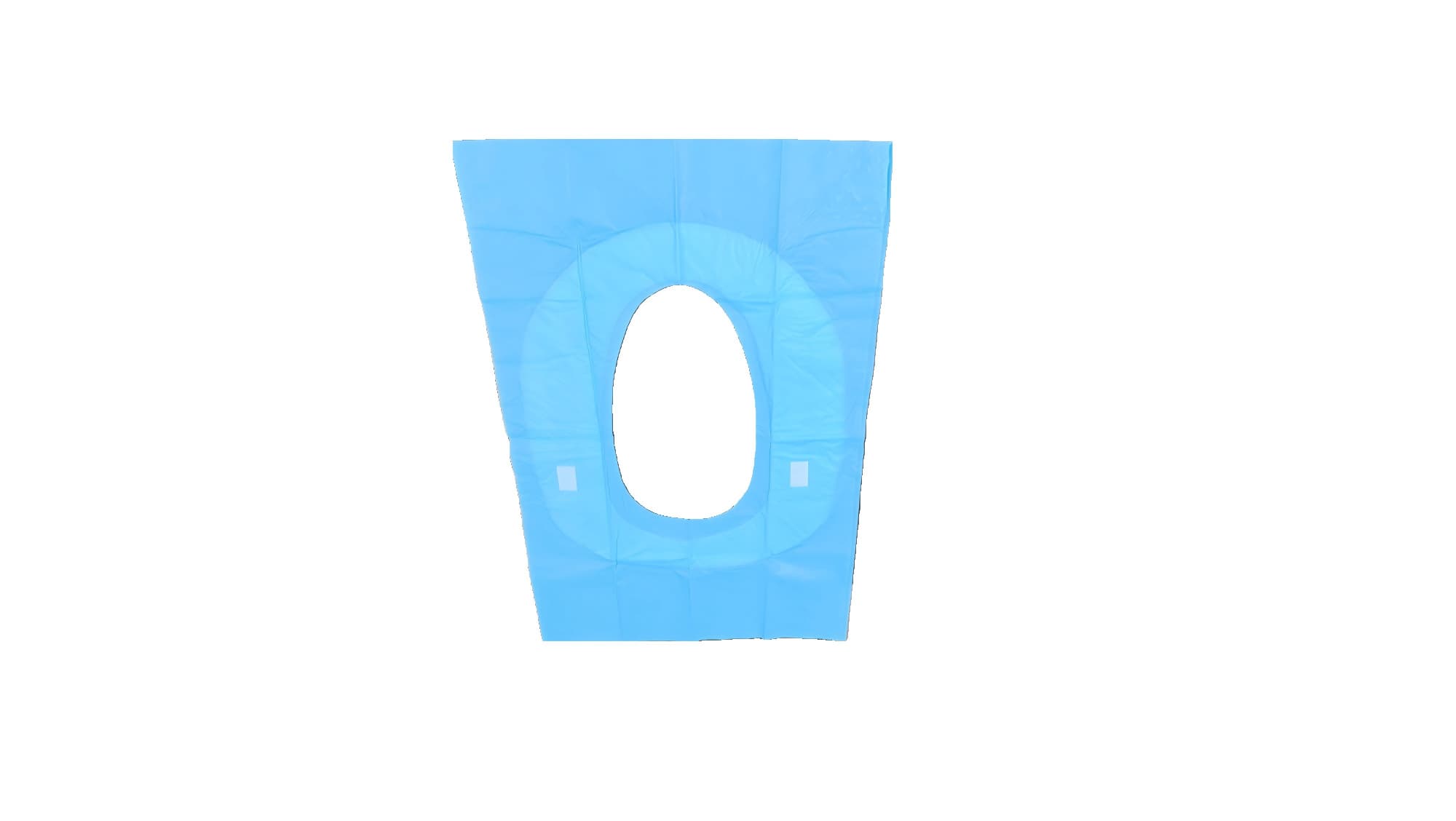

One machine produces finished, packaged cotton-added toilet seat pads for high-volume disposable hygiene markets.
Low-cost, hygienic toilet seat pads for guest bathrooms and public facilities, produced in-house at high speed.
Reliable supply of disposable pads for airports, stations, shopping malls and public restrooms.
Convenient disposable pads for family bathrooms and everyday personal hygiene use.
At 80-100 pcs/min continuous output, the line produces roughly 96,000-120,000 pads per 20-hour two-shift day (80-100 pcs/min × 60 min × 20 h). Higher qualified rate and one-operator design reduce unit cost and labor overhead — the investment pays back through in-house production instead of outsourced supply.
Anti-rust treatment + vacuum film + fumigation-free plywood case.
12-month mechanical parts warranty. DHL Express spare parts delivery.
Detailed video tutorials; on-site engineer dispatch available on request. Voltage customized to your market (e.g., 220V/60Hz).
Why Choose JUJIN
Buy directly from the source factory with zero middleman markup — factory-direct pricing for global B2B clients.
The first patent holder of Horizontal Folding technology, solving the industry's high-speed material jamming pain point.
Every machine runs a 48-hour continuous high-speed test with your actual materials before global shipment.
1000+ production lines installed, running stably in 50+ countries worldwide.
Cast film, toilet paper, wood pulp, laminated paper and laminated nonwoven fabric — combined in one continuous forming line.
80-100 pieces per minute, with a qualified rate of 99% or higher.
Expansion size of 40-62 cm in width × 40-65 cm in length.
Yes. The production process includes wood pulp forming, embossing and composite forming for a cotton-added finish.
Yes. Positioning adhesive application is included, and the adhesive unit uses servo control.
0.6-0.8 MPa input air pressure.
Yes. Small-package packaging, sealing and finished-product output are included in the line.
380 V / 50 Hz / 3-phase 5-wire as standard; voltage can be customized for target markets (e.g., 220V/60Hz).
12-month mechanical parts warranty.
Detailed video tutorials are provided; on-site engineer dispatch is available on request.
Each machine undergoes a 48-hour continuous high-speed run using the customer's actual materials before shipment.
DHL Express spare parts delivery for fast global support.
Please contact our sales team for the current lead time based on your configuration and destination.
